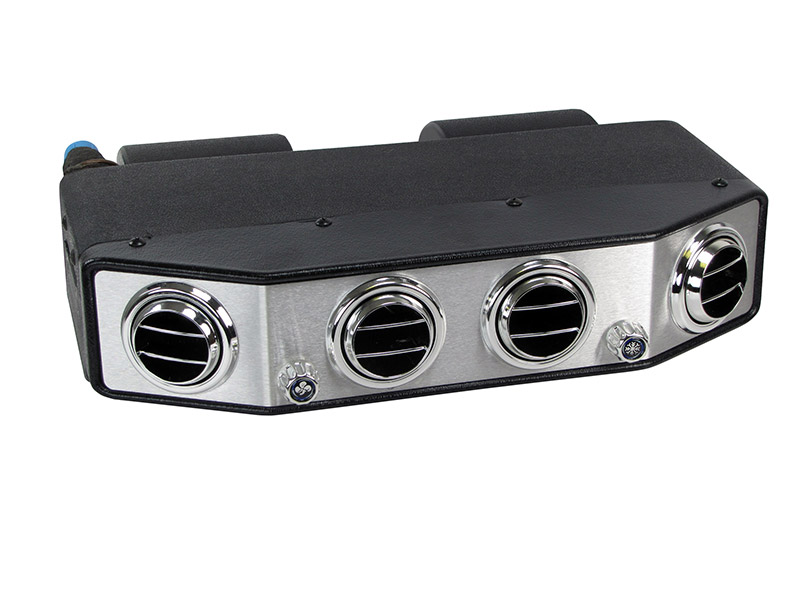

Complete under dash A/C Kit. 350 Series Unit Cool only or Heat & Cool.
Controls include 3 speed blower switch and adjustable thermostat. Double shaft, 3 speed blower motor with dual fan wheels provides approximately 265 CFM of airflow across the high efficiency, 32 pass coil for maximum cooling capacity.
Complete System Includes:
Underdash Cool Only Unit (Heat & Cool +$100.00)
Condensation Drain Tube
Wire Harness
Expansion Valve w/Clip & Tacky Tape
Unit Bracket w/Mounting Hardware
A/C Hose Kit
Receiver/Drier — Optional Chrome Drier Upgrade Available!
Binary Pressure Safety Switch — Trinary Pressure Switch Upgrade Available!
Compressor — Electric Compressor also Available (extra cost)

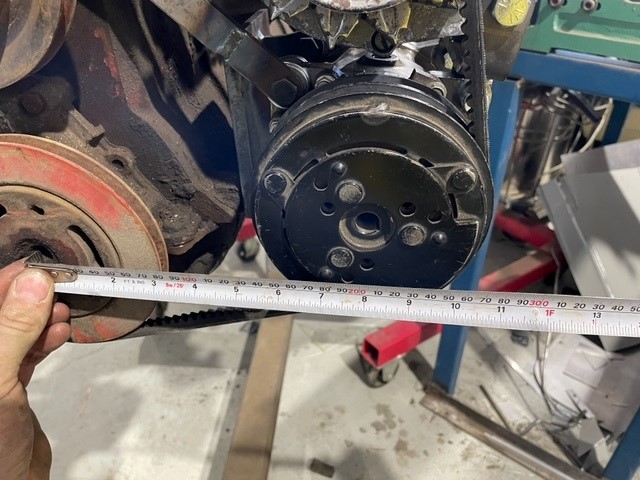

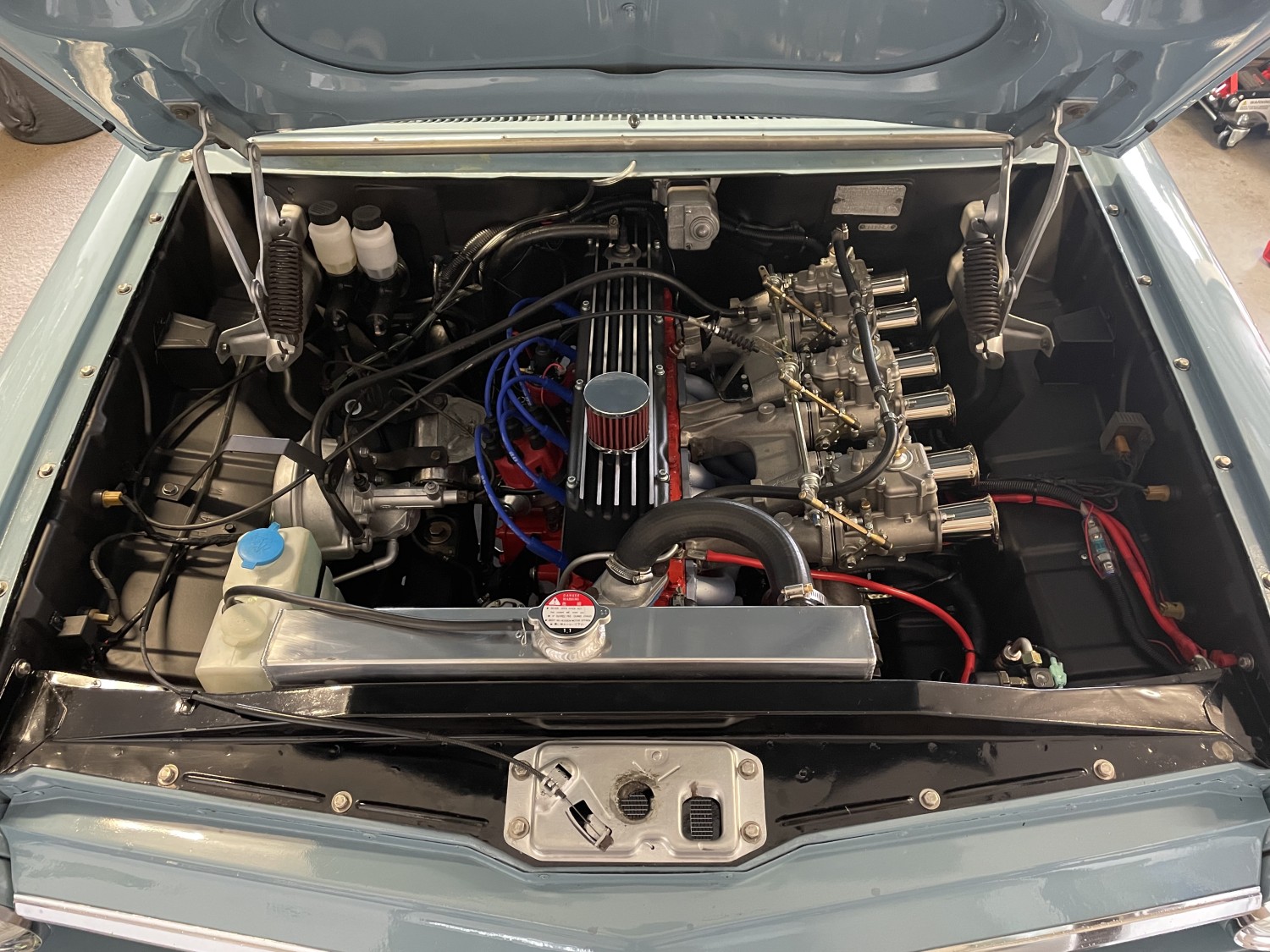

Compressor / Alternator Bracket Set; Six Cylinder Holden (Battery box Needs to be Turned & Compressor mount extended 80mm to clear chassis rail) other options also available
Condenser
Dimensions of Unde4rdash Evaporator; 410mm wide 122mm High 300mm deep
