Compact A/C Heat and Defrost Kit.
Heat, Cool & Defrost System, 265 CFM, 32 pass Aluminium Evaporator, features Cable operated Defrost & Heater Valve w/ Upper A/C & Heater fittings that pass directly through the fire wall with a custom grommets.
Dimensions: Length 410mm, Height 125mm, Depth 292mm
Complete System Includes:
800 Series Heat & Cool Evaporator
Choice of 4 Louvers or integration to factory dash Vents

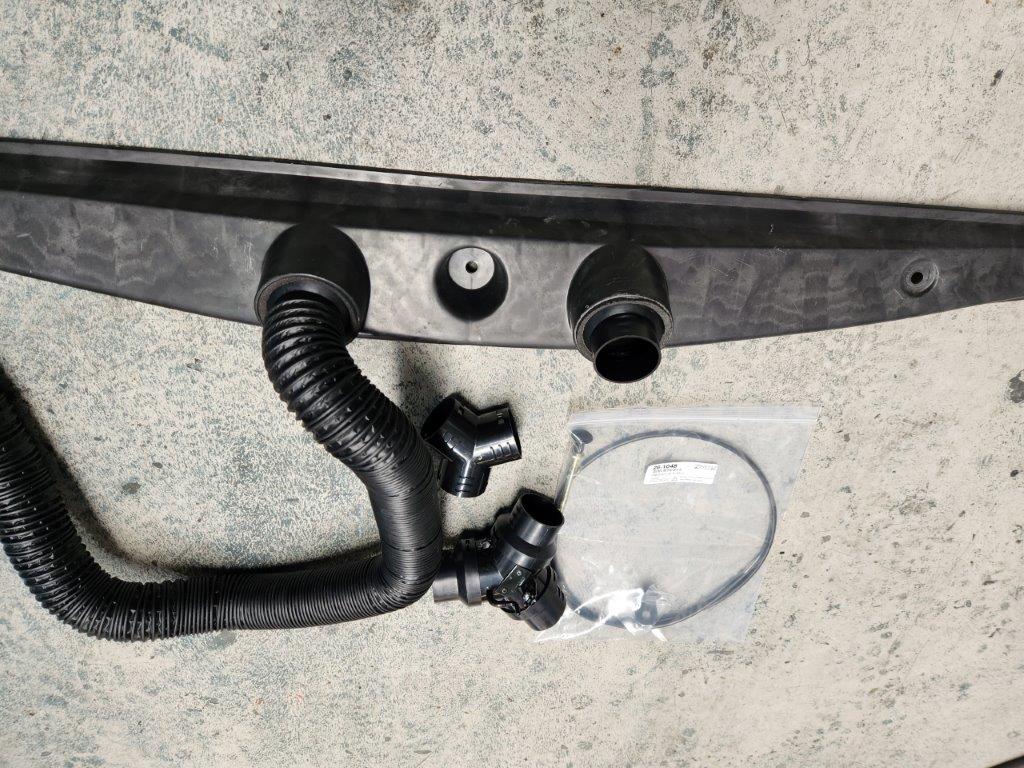

Duct Adapters to fit to factory Defrost chamber
Duct Hose
Condensation Drain Tube
Wire Harness
Standard Rotary Switching —
Cables for Defrost & Heater Valve
Heater Valve
Expansion Valve w/Clip & Tacky Tape
Unit Bracket w/Mounting Hardware
A/C Hose Kit
Receiver/Drier — Optional Chrome Drier Upgrade Available!
Binary Pressure Safety Switch — Trinary Pressure Switch Upgrade Available!
Compressor — Optional Chrome or Polished Compressor Upgrade Available!
Compressor mount; 6 Cly or 253-308 Holden, Chev SB or LS.
Condenser 11-1223
Note; 253-308 Compressor Mount Requires a 3 Row Crank Pulley.
Shipping Note: Normal processing or lead time to build & package a custom A/C system is 10-14 Business Days to ship.
