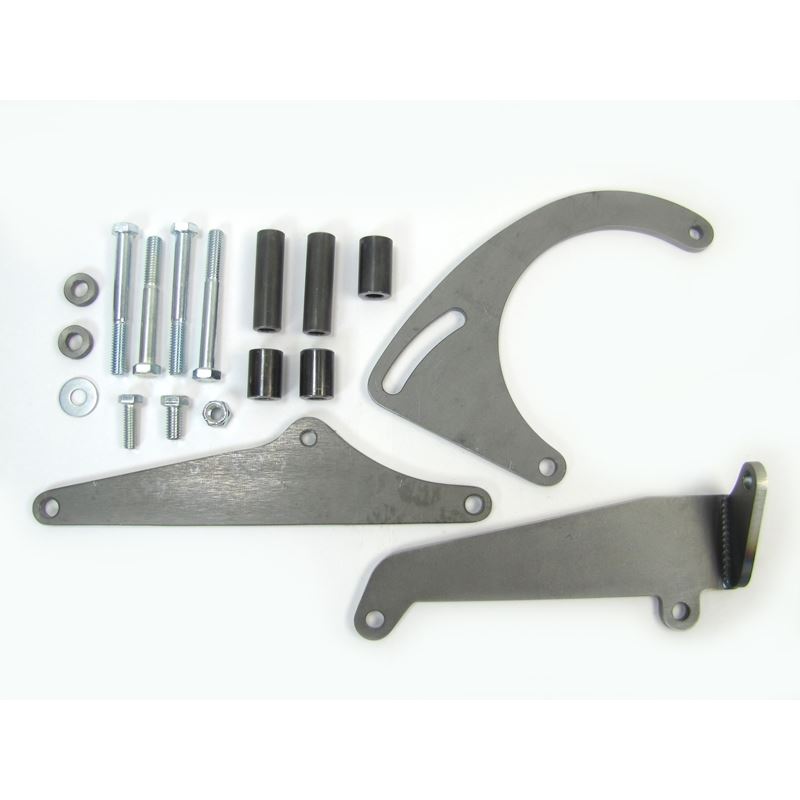

Chevrolet Small Block Alternator Mount, Short Water Pump, RH Side, Wide Mount
Designed to mount a GM 10SI Series alternator with 6 & 12 o’clock mounting holes to the passenger side of engine on vehicles with low hood clearance. Brackets bolt to the water pump and exhaust. NO HOLES NEEDED in head.

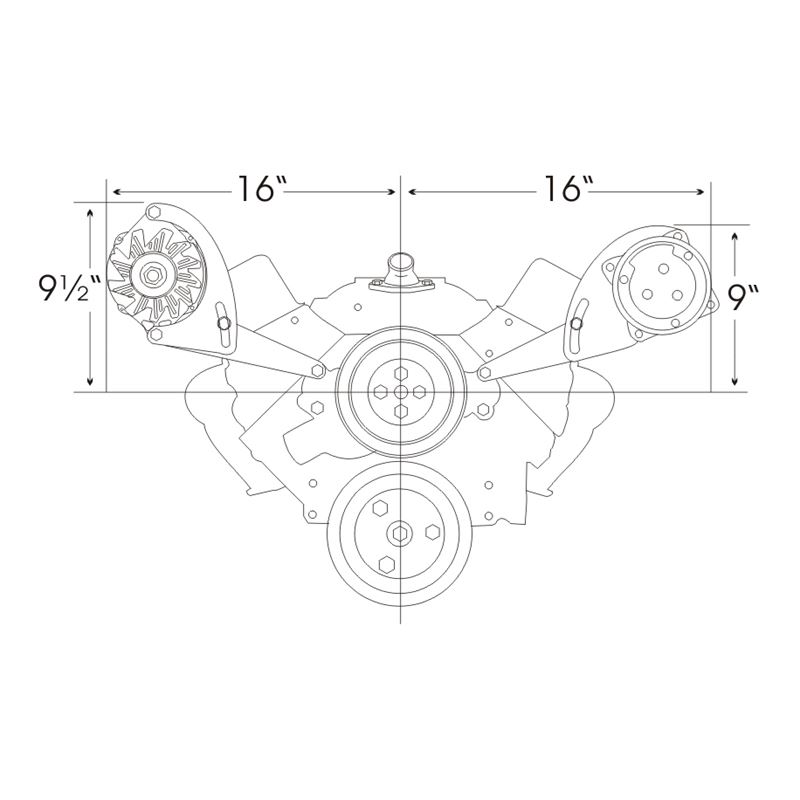

Furnished with hardware to fit stock exhaust manifolds and most headers. If used with headers the front tube must turn down enough to allow access to the bolt hole in front of the second pipe. (See Side View)
Bracket may be used individually or with matching compressor bracket #40-113L (Sold Separately)
Use w/ Engine Head Types A, B, C, D, E, F. No Holes In Heads. (Refer; Engine ID Doc)
Check if this Mount will fit your engine; Engine ID
Belt Routing; small-block-chevy-short-water-pump-belt-routing-in
