You can mount these compressors in an engine bay, a boot / trunk, under a tray of a ute / pickup or truck!
You will need a decent alternator with an output of at least 140A and up (depending on what you are already running electrically, as you will need to take this into account), to manage the 35A@2000rpm to 80Amp@5000rpm rpm.

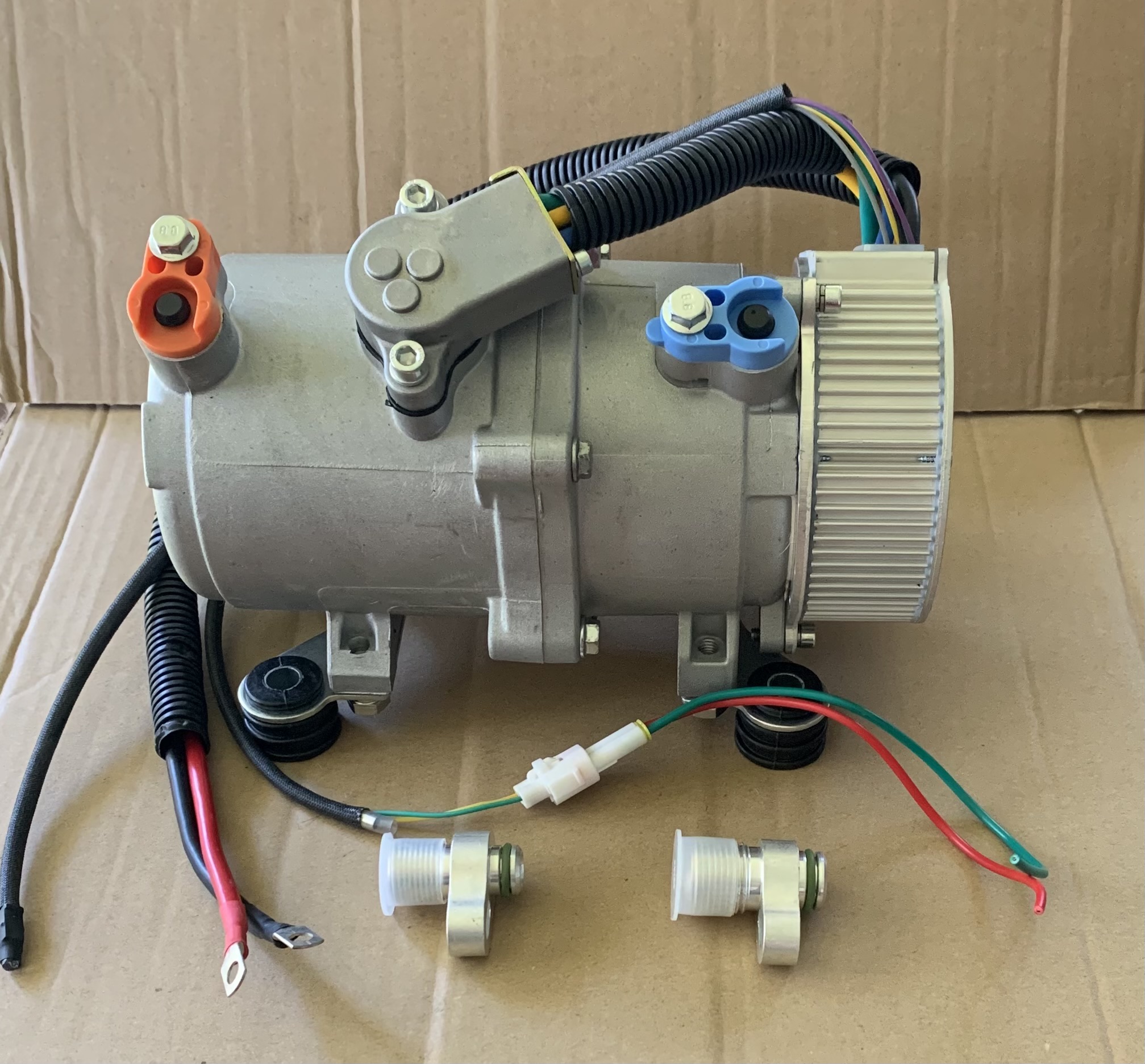

Comes with a set of Suction & Discharge pad to MIOR adaptors to allow the use of standard FOR screw on fittings.
Discharge is #8
Suction is #10
Specifications
Overall approx compressor dimensions
Width 123mm
Length 187mm
Height 155mm
Compressor cooling capacity (Manufacturers figures).
2000rpm Draw 30.8A 1.16Kw
3500rpm 2.11Kw
5000rpm Draw 75A 3.16Kw
