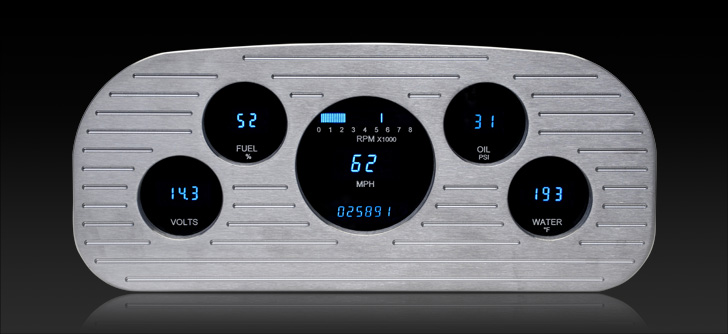

Dakota Digital Series III instrument systems offer the latest technologies and features for your custom vehicle.
High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and features!
Digital Gauges
- Speedometer – 00-255 MPH (optional metric version 0-255 km/h)
- Tachometer – 0-17,5000 RPM
- Oil Pressure – 0-99 PSI
- Water Temperature – 0-300*F (optional metric version 0-150*C)
- Fuel Level – 0-99%
- Voltmeter – 8-17 VDC
- Standard Colors – Blue or Teal
Digital Message Centers
Standard Displays
- Odometer (One time user settable, Million Mile)
- Dual (A/B) Trip Meter (0-9,999.9)
Performance Meters
- 0-60 MPH Timer (0-100 km/h)
- 1/4 mile time
- 1/4 mile end speed (trap speed)
- High speed recall
- High RPM recall
Gauges
- Speedometer (0-255 MPH/kmh) opposite scale of main speedometer
Built-In Indicators
Indicators
- Turn Signal (Left/Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On / On & Engaged when vehicle is equipped)
- Gear Position (Optional GSS-3000 sensor required)
- 4×4 (When vehicle is equipped)
- NOT ALL OEM INDICATOR LAMP FUNCTIONS WILL BE REPLACED
Included Sensors
Water Temperature
- 1/8″ NPT, Grounded isolted sensor with a 10ft harness
Oil Pressure
- 1/8″NPT solid state sensor with a 10 ft harness
Cable Driven Speed Sensor/Generator
- Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5″ clearance extending between the cable drive output and nay obstruction. Part #130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adapters available on request.)
Bushings
- Each kit comes with 1/8″ to 1/4″, 3/8″ and 1/2″ NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
Calibration
- Push Button
- Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included push buttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
Which extras items that are not included with this kit does Dakota Digital recommend that you consider?
Because Dakota Digital includes the required sensors for the Oil Pressure, Water Temperature and Speedometer with all its RTX, HDX, VHX and VFD instrument systems, in many cases no additional parts will be required. However, you may wish to consider the following optional items.
| GSS-3000 – Universal Gear Position Sensor
All Instrument packages contain a gear shift indicator display allowing the transmission gear position (Park, Reverse, etc.) to be shown within the message center. The GSS-3000 accommodates automatic transmissions with 2- 4 forward gears and enjoys a simple and straightforward installation. CLICK HERE FOR MORE INFORMATION Although Dakota Digital instrument systems are programmable for both day and night intensity levels, the DIM-1 will allow rotary, or on-the-fly brightness adjustment added convenience. CLICK HERE FOR MORE INFORMATION Dakota Digital instrument systems are designed to utilize a stock or aftermarket fuel level sensor. If a universal or replacement sensor is desired, the SEN-06-1 is a great choice. CLICK HERE FOR MORE INFORMATION The BIM-01-2 OBD-II (J1850/CAN) Interface connects directly to the ECM diagnostic port to extract engine and transmission data and supply it to the VFD/ VHX/ HDX/ RTX instrument, making installation a breeze. CLICK HERE FOR MORE INFORMATION The Dakota Digital BIM-17-2 makes it easy to add compass and outside air temperature information to your VFD/ VHX/HDX/ RTX instrument system. Readouts are visible in the instrument system’s message centers; sending units and mounting hardware included. |
 |
Dakota Digital is proud to introduce the BIM Expansion modules for Dakota Digital VFD, VHX, HDX and RTX instrument systems. The introduction of the Dakota Digital BIM modules allow you to add up to an additional 16 gauges, that’s right we said SIXTEEN specialty gauges to your vehicle without the need to cut extra holes in the dash or installing pillar and pod mounts to your columns or under the dash.
Please note that the BIM modules are only compatible with current VFD, VHX, HDX and RTX control boxes which have a black plastic housing. Older control boxes with metal housings are not compatible with the BIM modules.
