Details

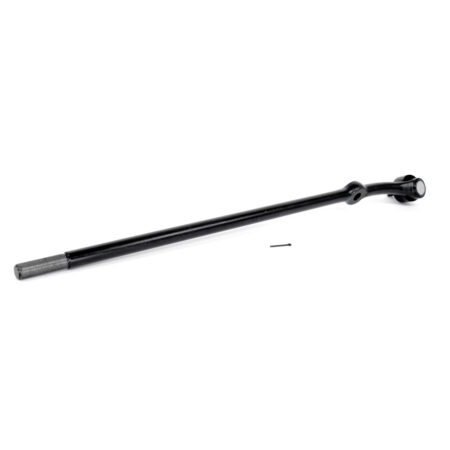

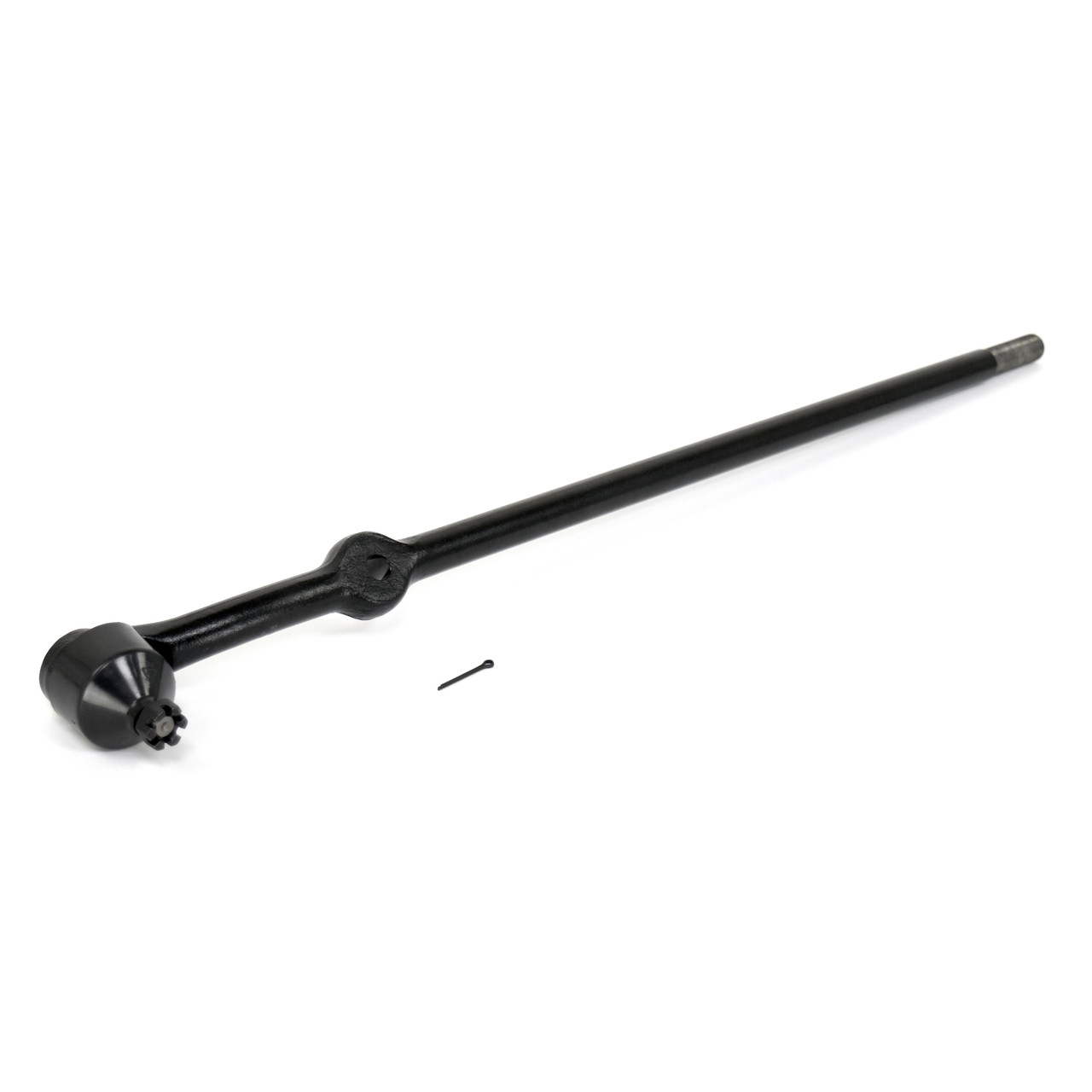

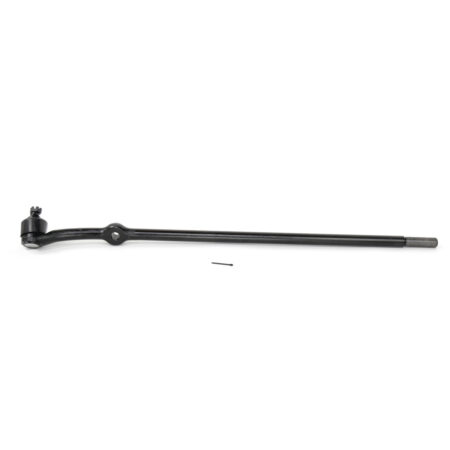

- Factory-correct reproduction of the steering link that connects to the pitman arm
- Direct fit replacement requires no additional modification
- OE-spec dimensions and angles retain correct steering geometry
- OE #: E0TZ-3304-B / E9TZ-3304-F
Specifications
| Part Location | Front |
|---|---|
| Material | Steel |
| Reference #1 | DS1018T / DS1138T |
| Reference #2 | E2TZ-3304-A / E6TZ-3304-C |
- Overall Length = 34.75″
- Thread diameter on main body = 0.8″
- Distance from thread to centre of bolt hole = 24.25″ (Center on hole to “step down” just before threads)
Fitment;
- 1980-1983 Ford F-100 | 2 Wheel Drive / 4 Wheel Drive (USA LHD)
- 1980-1996 Ford F-150 | 2 Wheel Drive / 4 Wheel Drive (USA LHD)
- 1980-1985 Ford F-250 | 2 Wheel Drive / 4 Wheel Drive (USA LHD)
- 1986-1997 Ford F-250 | 2 Wheel Drive (USA LHD)
- 1980-1997 Ford F-350 | 2 Wheel Drive (USA LHD)
