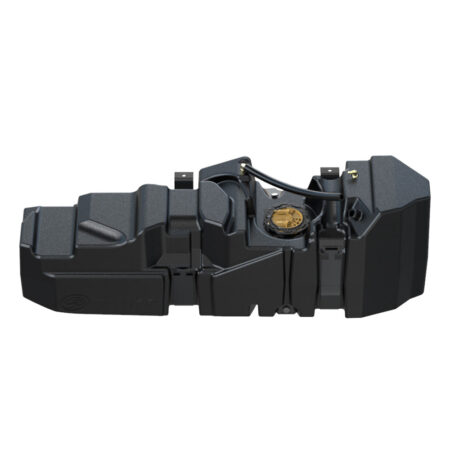

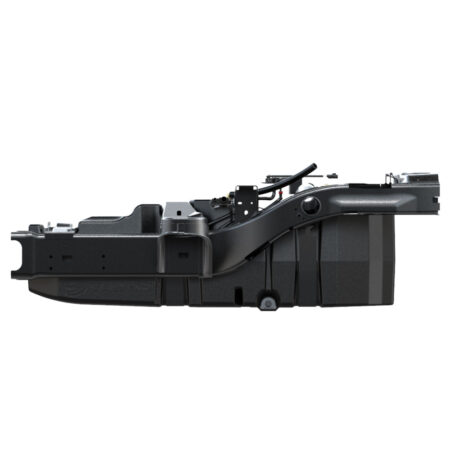

2005-24 Ram 6.7L Replacement Fuel Tank 197L (Short Bed)

52 GALLON REPLACEMENT FUEL TANK FOR 2005-2023 DODGE RAM CUMMINS CREW, QUAD & MEGA CAB SHORT BED



MORE FUEL. LESS HASSLE.

HOLDS 2 MORE GALLONS THAN COMPETITOR TANKS!

S&B’s 52-gallon fuel tank directly replaces the OEM 31-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B’s replacement fuel tank holds 2 more gallons than competitor tanks allowing you to save time, go futher, and get more out of your truck! Go big or go home!











AFTERMARKET LIFT PUMP

This tank features a built in sump which can be used for aftermarket lift pump installation, if desired. S&B recommends aftermarket lift pumps be installed according to the pump manufacturer’s instructions only. The S&B sump will not cure typical “1/4 tank issues”  common with aftermarket lift pumps.











SAVE TIME. GO FURTHER. GET MORE OUT OF YOUR TRUCK.

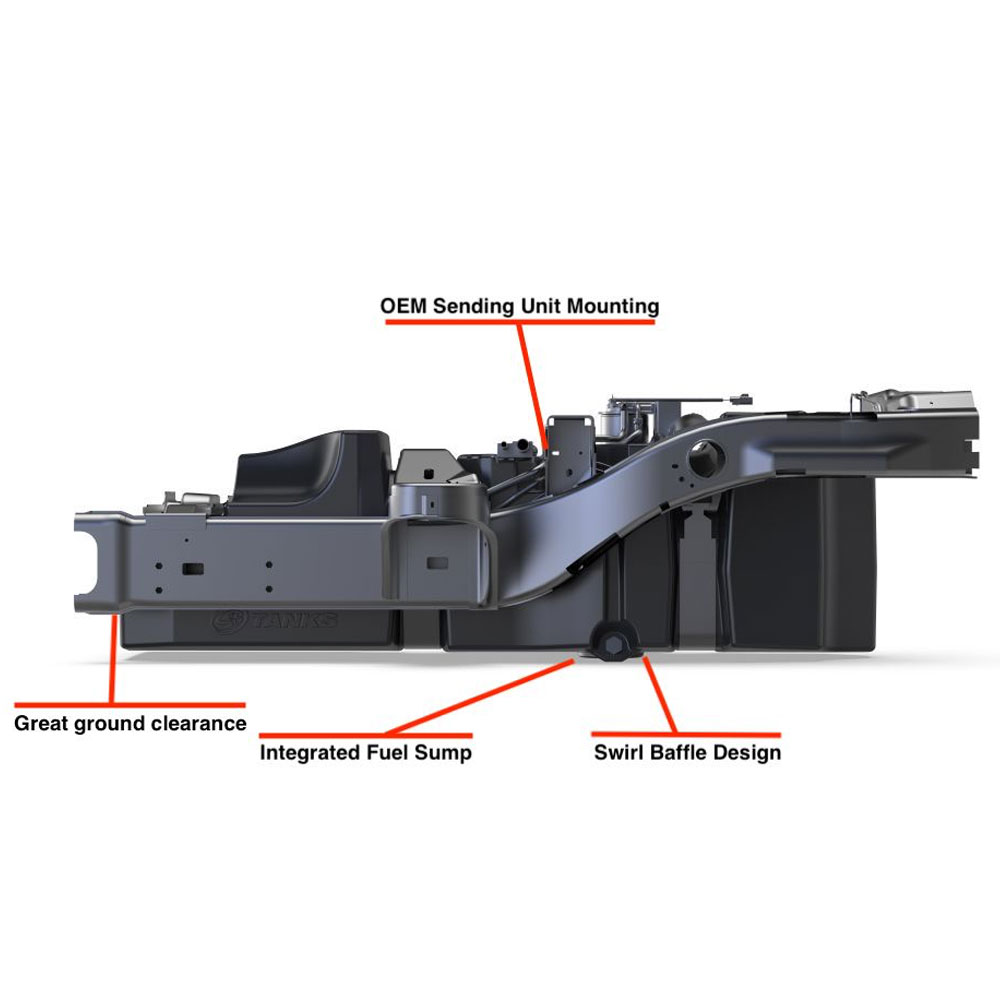

Take a look at some of the key features of S&B’s 52 Gallon replacement tank.













• TANK TYPE; MIDSHIP
• S&B CAPACITY; (APPROXIMATE) 52 GALLONS 197L
• WEIGHT (DRY) 40LBS – 18KG

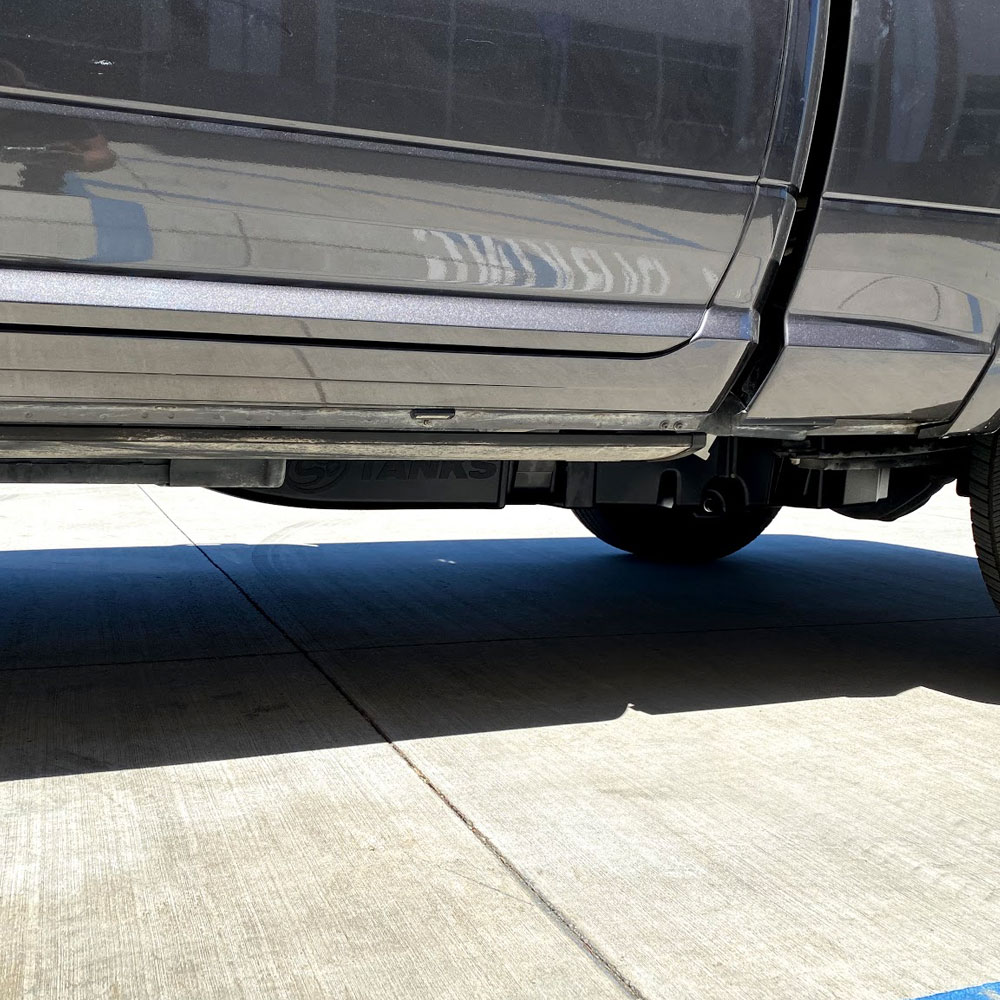

• GROUND CLEARANCE COMPARED TO OE TANK; 2.4” – 61MM LOWER
• SUMP; YES
• DRAIN; YES
• SENDING UNIT; OEM
• STRAPS INCLUDED; YES
• COMPATIBLE WITH OE SKID PLATE; NO
• COMPATIBLE WITH GOOSENECK AND 5TH WHEEL; YES
• TRANSFER PUMP READY; YES
• EMBEDDED FITTING THREAD SIZE; 1/2″ NPT
• DIMENSIONS; 63.62″ 1616mm)  X 17.84″ (453mm)  X 22.07″ (561mm)



Note; The fuel gauge will continue to work however the distance to empty will not be accurate. There is not a way to update the fuel tank size for the distance to empty to be accurate.
