- 3-Row Plus MaxCore 0.75” design maximizes the tube size, allowing for expanded flow and improved cooling
- Perfect OE-Style blend of Premium Aluminum grades for excellent high-pressure strength and corrosion resistance
- Fully TIG welded with a billet filler neck for sustained durability
- Transmission cooler inlet/outlet thread size: 1/8″-27 NPT (female)
- Transmission cooler adapter fitting size: 1/8″-27 NPT (male) to 5/16″ barbed end (male), for 5/16″ flexible hose 1/8″-27 NPT (male) to 1/2″-20 inverted flare (female), for 5/16″ flared tube hardline
- Note: Some applications may require use of a shorter fan spacer to allow for proper clearances
Specifications
| Material | Aluminium |
|---|---|
| Size | 17″ |
| Reference #1 | 259A |

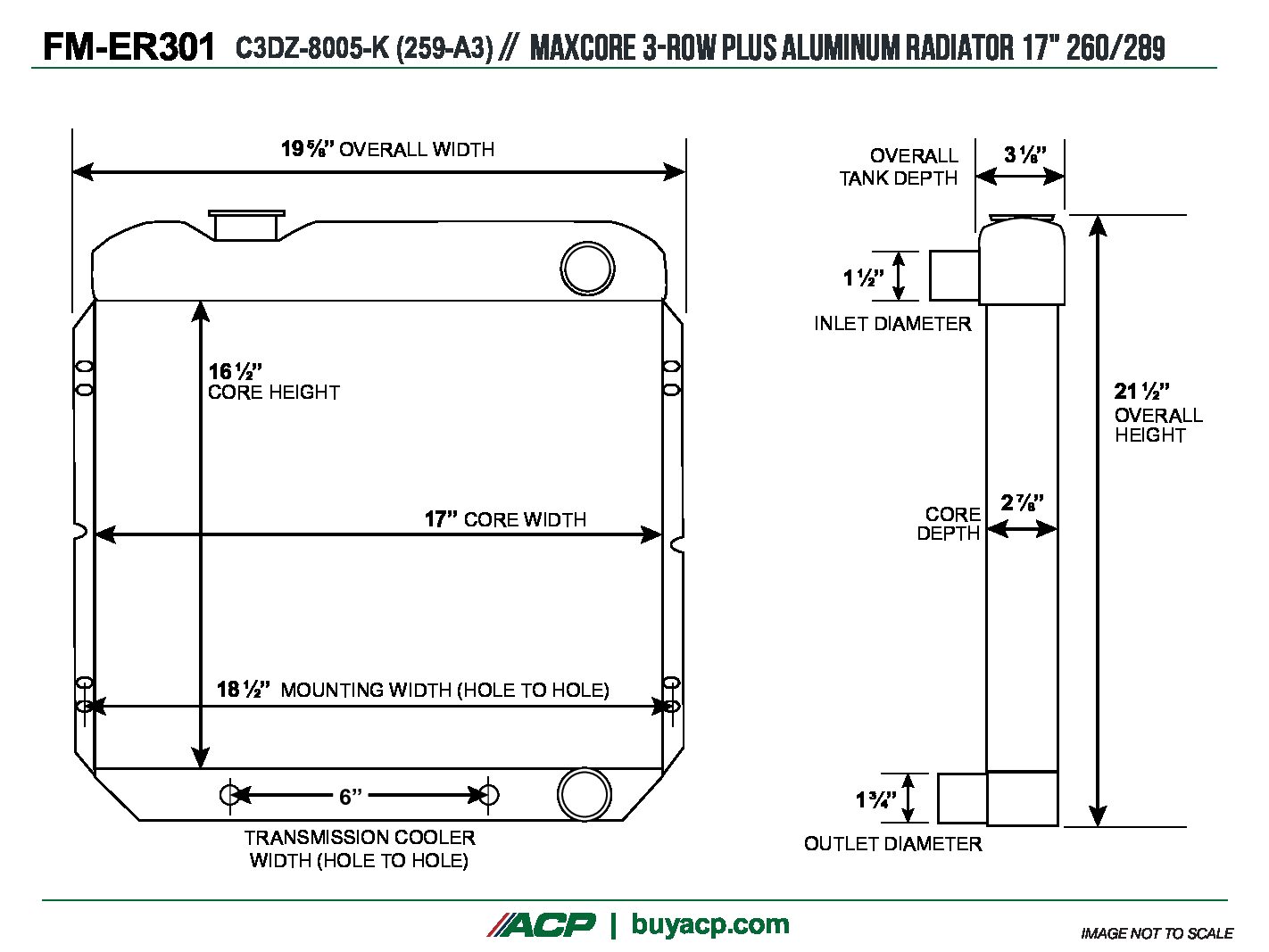

| Spec Sheet | FM-ER301 |
- Fitment;
- 1964-65 Ford Mustang | 260/289
- 1966 Ford Mustang | 289
- 1963-65 Ford Falcon | 260/289
- 1963-65 Ford Ranchero | 260/289
- 1963-65 Mercury Comet | 260/289
