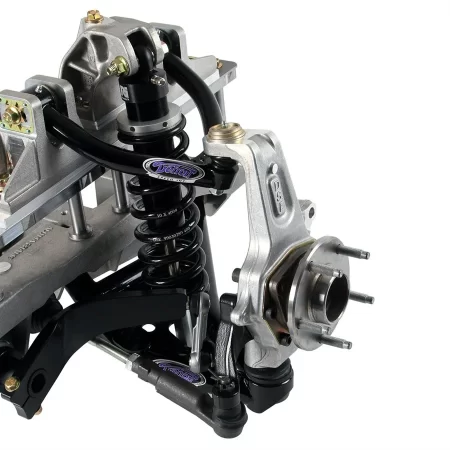

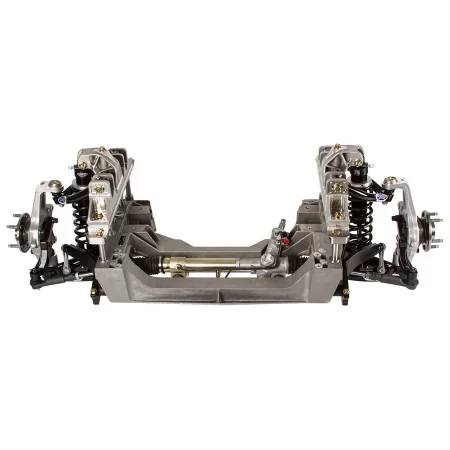

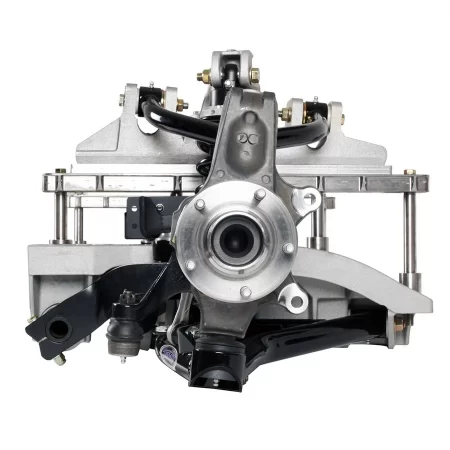

All aluminium front suspension system for 1964.5 -1970 Mustangs featuring Detroit Speed’s unique suspension geometry with 6″ of suspension travel for the ultimate in ride and performance.Spring Rate: 400lbs/inSpring Free Length: 10inSingle Adjustable Shock:Includes all features of base shock with ‘Detroit Tuned’ valving plus installed rebound adjustment with the simple turn of a knob while providing excellent ride quality on the street.
Features:
- Unique cast aluminium cradle and mounting components resulting in a high strength to weight ratio and precise fitment
- Tubular upper and lower control arms
- Detroit Tuned’ rack and pinion steering
- Detroit Speed/JRi aluminium coilover shocks with ‘Detroit Tuned’ valving available in fixed valve, single adjustable, double adjustable, or remote canister double adjustable versions
- Torrington Bearings
- Splined integrated style Anti-roll bar
- Detroit Speed’s Speed-LIGN caster/camber adjusters allow a wide range of adjustability to be made precisely and quickly without needing any additional shims
- Utilizes aluminium uprights and hub packs with a Ford 5″ x 4-1/2″ bolt pattern
- Can fit up to P265/35R18 tires on a 9″ rim on early models and up to P295/35R18 tires on a 10.5″ rim on later models
- Retains stock framerails and inner fenders and only requires a small amount of fabrication for installation
- Engine mount kits available for Ford small block Windsor engines, Ford FE big block engines, Ford 4.6, 5.4, and Coyote 5.0 modular engines including the Boss 302; as well as, GM LS engines
- Spanner Tool for easy shock adjustments
- Forged Detroit Speed Spindle
- Composite Anti-Roll Bar Bushings
SPECS
| Ackerman Angle (@ 15° turning angle) | .875 degrees |
|---|---|
| Bolt Pattern | 5×4.5 |
| Brand | Detroit Speed |
| Emission Code | 5 |
| Finish | Aluminum |
| Product Type | Aluma-Frame Subframe |
| Ride Height | 1 in. +/- 1 in. |
| Shock Type | Single Adjustable |
| Static Camber | -0.5 degrees +/-0.2 degrees |
| Static Caster | 8 degrees +/- 0.5 degrees |
| Static Toe | 0 degrees +/- 0.1 degrees |
| Total Bumpsteer (28 | .070 in. |
| Turning Angle | 27 degrees |
| UPC | 090127167007 |
| California Proposition 65 Required | Yes |
| Part Number | 032050-SDS |
