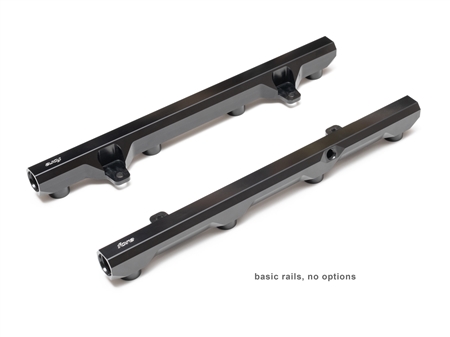

latest revision for the 2015-2017 Coyote Mustang. These can also be adapted to the GT350 and 2018+ Mustang with the separate purchase of the fuel rail pressure/temp sensor adapter for the LH side rail. (use P/N 200103)

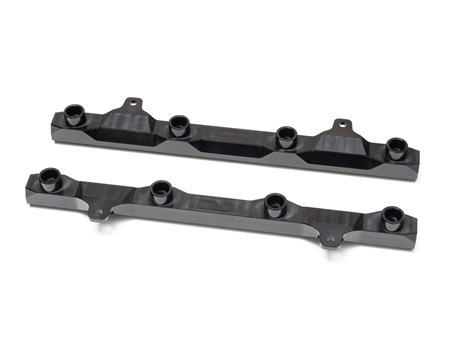

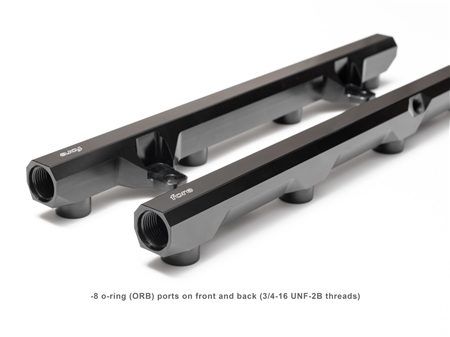

Fully machined from solid block of aircraft grade 6061 aluminium, then black anodized and laser etched. Rails incorporate machined-in mounting tabs completely eliminate tab deflection common on fuel rails with bolt on sheet metal mounting tabs. Designed to use factory length fuel injectors for hassle free injector selection. Female -8 o-ring ports (3/4-16 UNF threads) at the rail ends insure leak free operation and a single auxiliary 1/8 NPT port allow for use of functions. (fuel pressure gauge, nitrous, etc.)
Information on crossover fuel line types.
Crossover kits are unassembled. Installer will have to cut hose to length and assemble hose ends.
MUST use a PTFE based thread sealant on auxiliary 1/8 NPT port. Recommend Loctite #567 or Permatex 80631/80632.
Not for use with supercharger kits that come with fuel rails.
Adapters and Crossover Options

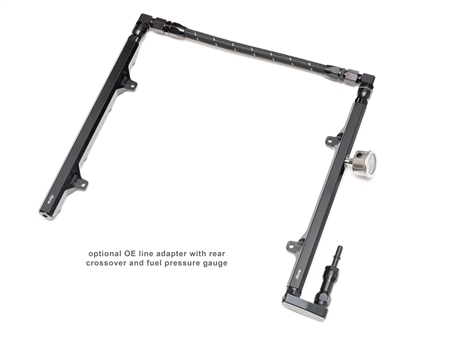

OE line adapter and rear crossover [ +$305.00 ]

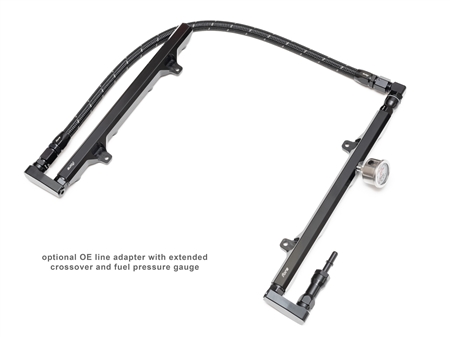

OE line adapter and extended crossover [ +$325.00 ]
Auxiliary Port Option
Add 1/8 NPT plug [ +$5.00 ]
Add fuel pressure gauge [ +$46.00 ]
Crossover Line Type (if applicable)
PTFE
FlexLP
Startlite
Tools
Include 6mL tube of Loctite 567 [ +$15 ]
Include black touch-up pen [ +$12.00 ]
