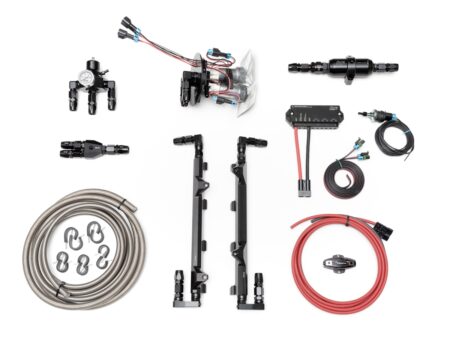

INCLUDES
- Cherokee WK2 Fuel Pump Module (dual pump)
- Walbro GSS342 G3 primary and secondary Fuel pumps
- F2i Fuel Pressure Regulator
- 88mm Inline Fuel Filter (Cellulose)
- PTFE -8 Feed / Return Fuel lines
- Billet Hellcat Hemi Fuel Rails
- All fittings, hose, hardware required for typical fuel line plumbing
-30 feet of fuel line and 10 matching hose ends (your choice)
-Qty 6, billet low profile 90 degree o-ring fittings
-Qty 7, straight AN to ORB fittings
-Qty 2, billet low profile 180 degree o-ring fittings
-Qty 2, -8 ORB 1.25″ port extensions
-Qty 10, hose straps and mounting screws
Options are available on the follow at extra costs; (note these options on checkout).
Fuel Rail Option
Black for OE supercharger
Clear for OE supercharger
Black for Whipple 4.5L* [ +$48.00 ]
Black for Kenne Bell 4.7L* [ +$48.00 ]
Delete Fore Hellcat fuel rails [ -$669.00 ]
Primary Fuel Pump
Walbro GSS342 G3 [ Inc in kit]
TI Auto F90000262 [ +$43.00 ]
TI Auto F90000267 [ +$43.00 ]
TI Auto F90000274 [ +$48.00 ]
TI Auto F90000285 [ +$110.00 ]
Secondary Fuel Pump
Walbro GSS342 G3 [ Inc in kit]
TI Auto F90000262 [ +$43.00 ]
TI Auto F90000267 [ +$43.00 ]
TI Auto F90000274 [ +$48.00 ]
TI Auto F90000285 [ +$110.00 ]
Electrical Upgrade
None (I have my own fuses, wiring, relays, etc)
Pump power pigtails only [ +$43.00 ]
FC2 Controller with wiring [ +$354.00 ]
FC3 Staged Controller with wiring [ +$421.00 ]
Fuel Lines
PTFE -8 Feed / Return
FlexLP -8 Feed / Return
Startlite -8 Feed / Return
Upgrade to -10 Feed [ +$110.00 ]
Filtration Media
Cellulose (Inc with Kit)
Microglass SSD [ +$32.00 ]
Stainless Steel [ +$54.00 ]
Fuel Filter Upgrades
Upgrade to 128mm Filter [ +$51.00 ]
Add billet mounting bracket [ +$76.00 ]
Add filter monitoring gauge and fitting [ +$99.00 ]
Hellcat Fuel Pressure Sensor
Delete OE Fuel Pressure Sensor (Inc in kit)
Inline Aftermarket Sensor [ +$146.00 ]
Regulator Mounted Aftermarket Sensor [ +$88.00 ]
System Options
0-100 psi Fuel Pressure Gauge [ +$46.00 ]
Honeywell Pressure Switch for FC3 [ +$76.00 ]
Flex fuel sensor intercept fittings [ +$117.00 ]
Boost / Vacuum Manifold Kit [ +$127.00 ]
Tools
Include 6mL tube of Loctite 567 [ +$14.00 ]
Include black touch-up pen [ +$12.00 ]
AN soft jaws and wrench set [ +$107.00 ]
Notes on Hellcat OE Fuel Pressure Sensor Options:
By default, our fuel system will delete the OE fuel pressure sensor. Due to popular request, we have added the following provisions for the fuel pressure sensor, which must be selected by the purchaser:
Delete OE Fuel Pressure Sensor
Inline Aftermarket Sensor: includes a new AC Delco sensor and provisions to mount in a high flow coupling with two more hose ends. In L2 and L4 systems, this can be installed without extending the OE electrical harness; however, extension of the OE harness may still be required on L3 systems.
Regulator Mounted Aftermarket Sensor: includes a new AC Delco sensor and an adapter to mount directly on the fuel pressure regulator. The installer will have to extend the OE electrical harness to accommodate the new location of the sensor.
