Rare AM/FM factory option!

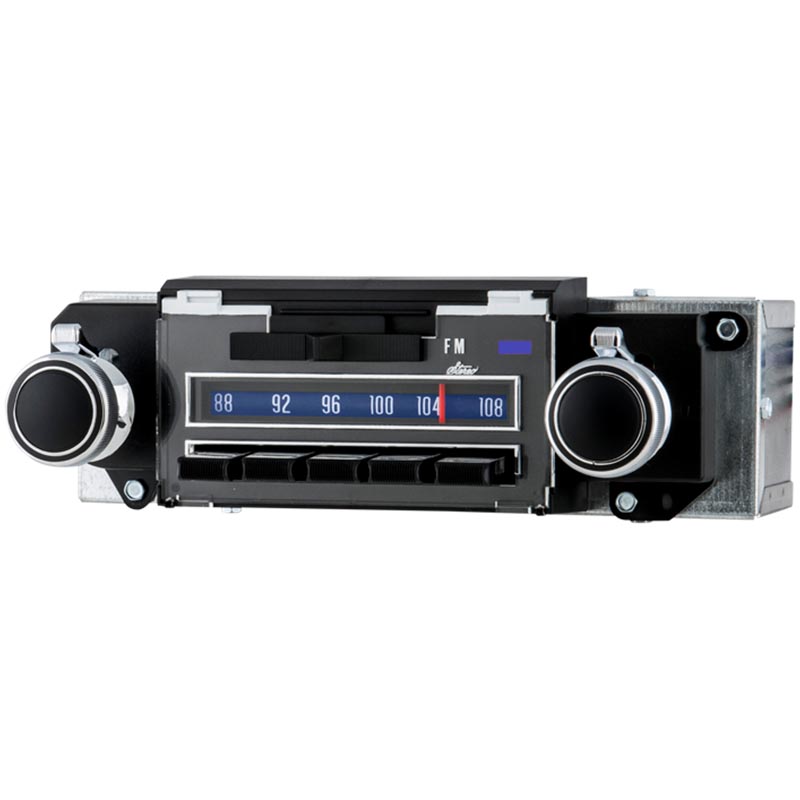

Our 1969-1970 Chevrolet radio is designed to look, fit, and feel just like the original AM/FM radio. Behind the dash, the radio case is only 4.5” deep, allowing room for air conditioning and other options. The AM/FM ‘roll over’ type dial looks and works exactly like the original and the AM/FM band is selected by using the slide bar. This radio does not have a digital display.
When the radio is powered on, the dial pointer, knobs, and pushbuttons all move and work like the original. Every radio comes equipped with Bluetooth® for wireless audio streaming and hands-free phone control. Other features include a 3.5mm auxiliary port to plug in any compatible device, such as an MP3 player, a CD player, or an updated cassette/8 track player, as well as another input jack specifically designed to work with our foot control switch. Each radio comes with a 12 ½” 12 wire harness with male and female connections for easy connection/disconnection. This harness includes power, ground, a 12-volt output wire (for options like a power antenna or amplifier remote connection), 4 speaker connections, and dial lights. The radio also has 4 channel RCA outputs for an external amplifier and a subwoofer RCA output. Please see the links below for more information.
- Fits the 1969-1970 Bel Air, Biscayne, Caprice, and Impala dashes without any modification.
- Radio case dimensions: 2.5” H, 8.25” W, 4.5” D (behind the dash)
- Black and chrome-plated plastic knobs and chrome-plated backrings are included and match the original.
- Authentic black plastic pushbuttons function and match the original.
- AM/FM radio with programmable options for North American or European channel spacing.
- Digitally tuned AM/FM Stereo receiver provides stable, high-quality reception while keeping the original analog display.
- AM/FM ‘roll-over’ dial scale looks and functions like the original!
- The ‘Blue dot’ stereo indicator illuminates when the radio receives a stereo signal
- Sensitivity (FM S/N 30dB) typical 5 dBµ, (AM S/N 20dB) typical 29 dBµ.
- Bluetooth® 5.0 with built-in microphone for HFP
- HFP, HSP, A2DP, and AVRCP profiles are supported.
- Bluetooth mode offers a programmable audio equalizer while streaming music.
- 3.5mm auxiliary input jack for any compatible device such as an MP3 player, a CD player, or an updated cassette/8 track player (radios do not work with original, unaltered 8 track players)
- Radio is compatible with XM radio receivers using the 3.5mm input jack. (XM is not included with the radio purchase)
- An additional input jack specifically for use with our foot control switch option is included.
- Radio output: 180 Watts RMS (45W x 4 speaker channels at 4Ω, 14.4 V, 1 kHz)
- Do not use original, grounded speakers! Radios have protective circuits that shut down if a speaker wire is grounded or has faults.
- Speaker recommendations: 40+ watts RMS rating, 4 Ohms, SPL 88+
- Four low-level outputs + 1 subwoofer RCA output located on the back of the radio for use with an external amplifier
- Radio operates on 11.5-16 Volts DC, negative ground only!
- Controls use the same size and thread shafts as the original. Mounting hardware is included.
- Control operations include on/off, volume, tone, tuning, balance, and a hidden fader function, all from original-looking and feeling analog controls.
- Pushbuttons can save 5 FM preset stations and 5 AM preset stations.
- Memory retention (presets and other user settings) with power disconnected; there is no need for constant power!
- LED dial lights are warm white to match the original
- Standard (Motorola) antenna jack located on the back of the radio
- 9” mounting backstrap included
