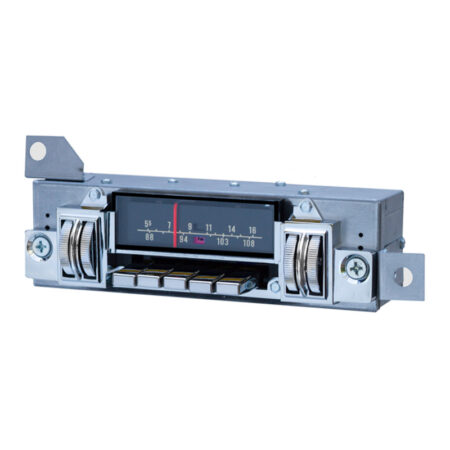

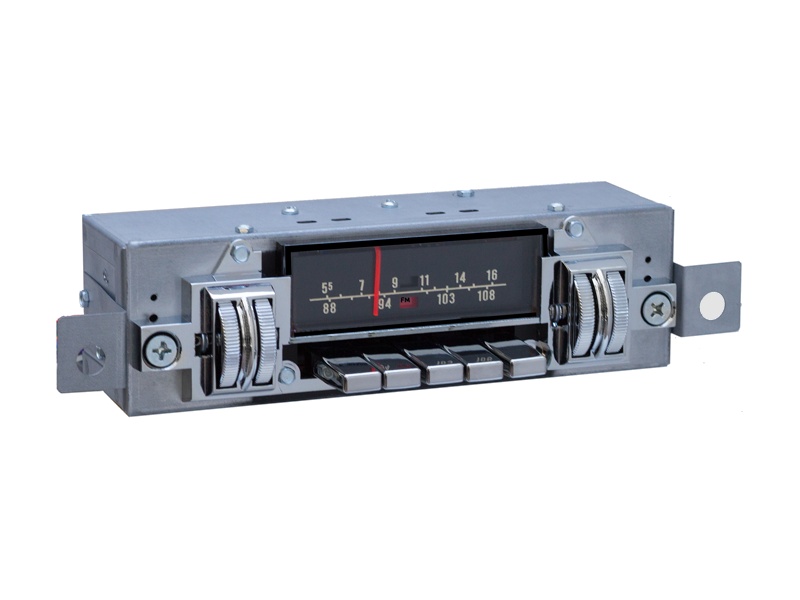

1968 Plymouth Valiant*, 1968-69 Plymouth Barracuda, 1970 Dodge Swinger* & Plymouth Duster* radios are designed to look, fit, and feel like the original. Our thumbwheel-style radios fit and mount exactly like the original; no modifications are needed! *Rallye dashes only! For 1968 non-Rallye Valiant, see model #673103BT
Behind the dash, the radio case is only 3.57” deep, allowing room for air conditioning and other options. The AM/FM dial scale is an exact copy of the original and the AM/FM band is selected by using the right thumbwheel. This radio does not have a digital display.
When the radio is powered on, the dial pointer, thumbwheels, and pushbuttons all move and work like the original. Every radio comes equipped with Bluetooth® for wireless audio streaming and hands-free phone control. Other features include a 3.5mm auxiliary port to plug in any compatible device, such as an MP3 player, a CD player, or an updated cassette/8 track player, as well as another input jack specifically designed to work with our foot control switch. Each radio comes with a 12 ½” 12 wire harness with male and female connections for easy connection/disconnection. This harness includes power, ground, a 12-volt output wire (for options like a power antenna or amplifier remote connection), 4 speaker connections, and dial lights. The radio also has 4 channel RCA outputs for an external amplifier and a subwoofer RCA output. Please see the links below for more information.
*with Rallye dash, for non-Rallye dash see model #673103BT
1968-1969 Plymouth Barracuda AM/FM/Bluetooth® Radio
1970 Dodge Swinger 340* & Plymouth Duster 340* AM/FM/Bluetooth® Radio
*Rallye dash only
- Fits the original 1969 Mopar B Body dashes.No modifications necessary!
- Radio case dimensions: 2.5” H,8.75” W, 3.61” D (behind the dash)
- The chrome-plated die-cast nose piece looks and mounts just like the original radio did!
- Chrome-plated thumbwheels exactly match the originals.
- Black plastic pushbuttons match the originals.
- The AM/FM dial scale is a copy of the original, including the band indicator window in the middle of the dial. The AM FM flags will switch when the thumbwheel is switched up and down.
- AM/FM radio with programmable options for North American or European channel spacing.
- Digitally tuned AM/FM Stereo receiver provides stable, high-quality reception while keeping the original analog display.
- Sensitivity (FM S/N 30dB) typical 5 dBµ, (AM S/N 20dB) typical 29 dBµ.
- Bluetooth® 5.0 with built-in microphone for HFP
- HFP, HSP, A2DP, and AVRCP profiles are supported.
- Bluetooth mode offers a programmable audio equalizer while streaming music.
- 3.5mm auxiliary input jack for any compatible device such as an MP3 player, a CD player, or an updated cassette/8 track player (radios do not work with original, unaltered 8 track players)
- Radio is compatible with XM radio receivers using the 3.5mm input jack. (XM is not included with the radio purchase)
- An additional input jack specifically for use with our foot control switch option is included.
- Radio output: 180 Watts RMS (45W x 4 speaker channels at 4Ω, 14.4 V, 1 kHz)
- Do not use original, grounded speakers! Radio has a protective circuit that shuts down if a speaker wire is grounded or has faults.
- Speaker recommendations: 40+ watts RMS rating, 4 Ohms, SPL 88+
- 4 low-level outputs + 1 subwoofer RCA output located on the back of the radio for use with an external amplifier
- Radio operates on 11.5-16 Volts DC, negative ground only!
- Radio mounts in the dash just as the original did. Mounting hardware is included.
- Thumbwheel operations include on/off, volume, tone, tuning, and a hidden balance/fader function, all from original-looking and feeling analog controls.
- Pushbuttons can save 5 FM preset stations and 5 AM preset stations.
- Memory retention (presets and other user settings) with power disconnected, no need for constant power!
- LED dial lights are green to match the original
- Standard (Motorola) antenna jack located on the back of the radio
- *with Rallye dash, for non-Rallye dash see model #673103BT
- 1968-1969 Plymouth Barracuda AM/FM/Bluetooth® Radio
- 1970 Dodge Swinger 340* & Plymouth Duster 340* AM/FM/Bluetooth® Radio
- *Rallye dash only
