This universal A/C hose kit is for use with a single Hurricane or Underdash unit mounted in the rear of the vehicle. Hoses can be routed and cut to length as needed for a custom installation. Fittings must be crimped with a beadlock style crimoping tool to complete the installation.

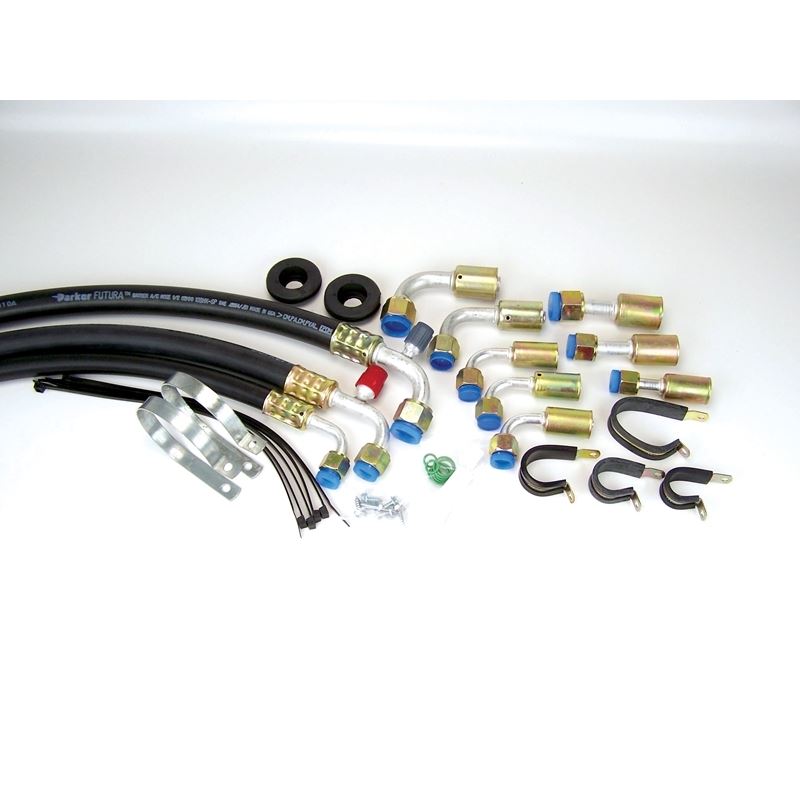

Hoses Included:
- 1 – #6, 240″ Long (5/16″ ID)
- 1 – #8, 60″ Long (13/32″ ID)
- 1 – #10, 240″ Long (1/2″ ID)
Kit Bag Contents:
- 1 – #6 Straight Beadlock Fitting
- 1 – #8 Straight Beadlock Fitting
- 1 – #10 Straight Beadlock Fitting
- 4 – #6 90° Beadlock Fitting
- 1 – #8 90° Beadlock Fitting
- 1 – #8 90° Beadlock Fitting w/ 134a Service Port (High Side)
- 1 – #10 90° Beadlock Fitting
- 1 – #10 90° Beadlock Fitting w/ 134a Service Port (Low Side)
- 2 – Drier Strap Brackets
- 6 – Zip Ties
- 1 – Double wrap-around Clamp
- 1 – #6 Wrap-around Clamp
- 1 – #8 Wrap-around Clamp
- 1 – #10 Wrap-around Clamp
- 2 – Rubber Grommets
- 6 – Sheet Metal Screws
- 1 – O-Ring Kit (4-#6, 2-#8, 2-#10, & 1 tube oil)
- Speciation for Hoses;
- GALAXY® 4826
Tube- CR | Barrier- PA | Friction- NBR | Reinforcement- PET | Friction- SBR | Cover- CIIR- Two polyester spiral barrier hose
- J51 aII outside diameters
- Temperature range -22 °F to 257 ° F (-30 °C / 125 °C)
- Compatible with R-12 / R134a refrigerants and mineral oil / PAG’s
- Meets GM 10013C and Delphi SD2-254 specifications (5/8 & 3/4)
- Meets J2064 “TYPE C Class II” hose performance
- Flexible – easy to route
