The Hurricane A/C, Heat & Defrost System is easy to install. The unit mounts to the firewall with a custom mounting plate using the original heater mounting holes. Heater & A/C hoses pass neatly through firewall, through a rubber grommet, into the engine compartment. An all new electronic slide control fits into the original dash opening to operate the fan, A/C, Heat and Defrost Functions. Louvers mount neatly into the dash for a factory appearance. A custom condenser assembly includes mounting brackets, receiver/drier and pre-formed aluminum lines to pass neatly through the core support. The included compressor has Plain finish but upgrade for Polished or Chrome finish is available. A/C hose kit supplied may be pre-crimped or universal depending on engine application. Universal hose kit will require fitting and crimping hoses to complete the installation
Complete System Includes:
- Hurricane Heat Cool and Defrost Unit
- Firewall mounting plates

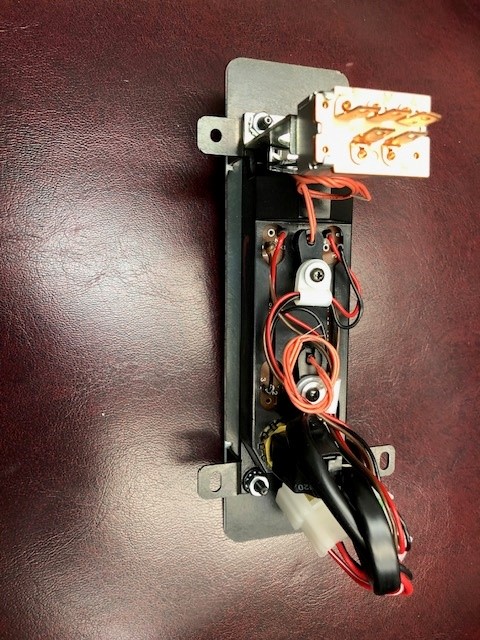

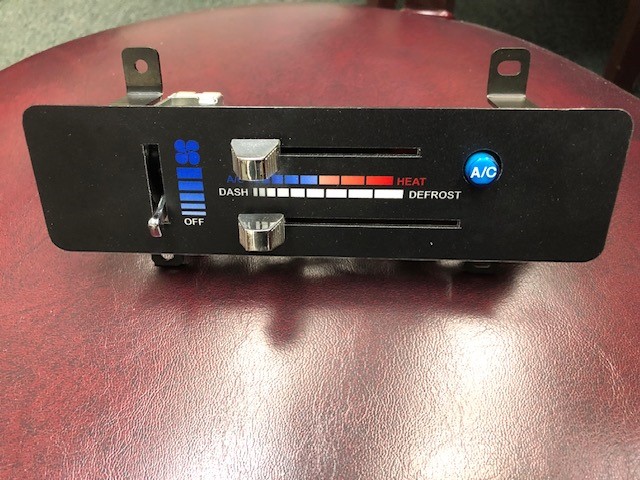

- Electronic Slide Control (Measures 194mm wide x 51mm High)
- Wire Harness
- In-dash Louvers
- Duct Hose
- Electronic Bypass Heater Valve
- Expansion Valve
- Custom Condenser Assembly
- Receiver/Drier
- Pressure Safety Switch
- Compressor – Upgrade available for Polished or Chrome Finish
- Compressor Mounting Bracket – (Some engine applications may require an additional charge)
- A/C Hose Kit
- Misc. Hardware
Note; This kit is designed for the LHD USA Truck, some mods are required to RHD Australian vehicles, mainly to the controller to allow it to fit.
Shipping Note: Normal processing or lead time to build & package a custom A/C system is 10-14 Business Days to ship.
